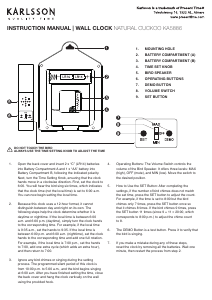

INSTRUCTION MANUAL | WALL CLOCK NATURAL CUCKOO KA5886

1. Open the back cover, insert 2 x “C” (LR14) size batteries into the Battery

Compartment A and 1 x “AA” size battery into the Battery Compartment B as

symbols indicate.

2. Turn the Time Setting Knob , make sure the clock hands move into the clockwise

direction. At rst, please set the clock to 6:00 o’clock. You will hear the bird singing

six times. lt means the CLOCK time (not local time) is at 6:00 o’clock a.m. Now, you

can start to set the local time.

Because this clock is 12-hour format, it can not tell day or night in 24 hours. The

next two steps are to help the clock to know day time or night time.

3. If the local time when setting is later than 6:00 a.m. but earlier than 6:00 p.m. (day

time), just turn the clock hands to the corresponding number. For example, if the

local time is at 9:35 a.m., turn the hands to 9:35.

4. If the local time when setting is later than 6:00 p.m. but earlier than 6:00 a.m. (night

time), please turn the clock hands to the corresponding number but add one more

circle turning. For example, if the local time is at 7:00 p.m., turn the hands to 7:00

and add one more hour and turn back again to 7:00.

5. Ignore the bird chiming or singing during the settings.

6. The programmed silent time of this clock is from 10:00 p.m. to 5:00 a.m. per day.

The initial bird singing time starts at 6:00 a.m.

7. After setting(s), please close the back cover, hang it vertically on the wall through the

Hook .

8.

9.

How to use SET Button : After the setting is nished, but the bird singing times are

later than or less than the set time, press the SET button to add to the correct time(s). For

example, the set time is 8:00, but the bird only sings 7 times, press the button only once,

you will hear the bird singing 8 times. lf the bird sings 9 times, press this button

11 times (9 + 11 = 20:00 = 8:00 p.m.), you will hear the bird singing 8 times.

DEMO Button is a testing button. Press it to test the bird is singing or not.

lf you make a mistake during the steps, the clock needs to be reset. Just take out all

batteries. One minute later, please reset the clock from the very beginning and start again

from step 2.

Instruction manual Modern Cuckoo | KA5886

Operating Buttons :

Volume Stwitch is to control the volume of the Bird Speaker . lt has MAX

(high), OFF (mute) and MIN (low) three levels. Please move the switch to the position

you need.

1. Open the back cover, insert 2 x “C” (LR14) size batteries into the Battery

Compartment A and 1 x “AA” size battery into the Battery Compartment B as

symbols indicate.

2. Turn the Time Setting Knob , make sure the clock hands move into the clockwise

direction. At rst, please set the clock to 6:00 o’clock. You will hear the bird singing

six times. lt means the CLOCK time (not local time) is at 6:00 o’clock a.m. Now, you

can start to set the local time.

Because this clock is 12-hour format, it can not tell day or night in 24 hours. The

next two steps are to help the clock to know day time or night time.

3. If the local time when setting is later than 6:00 a.m. but earlier than 6:00 p.m. (day

time), just turn the clock hands to the corresponding number. For example, if the

local time is at 9:35 a.m., turn the hands to 9:35.

4. If the local time when setting is later than 6:00 p.m. but earlier than 6:00 a.m. (night

time), please turn the clock hands to the corresponding number but add one more

circle turning. For example, if the local time is at 7:00 p.m., turn the hands to 7:00

and add one more hour and turn back again to 7:00.

5. Ignore the bird chiming or singing during the settings.

6. The programmed silent time of this clock is from 10:00 p.m. to 5:00 a.m. per day.

The initial bird singing time starts at 6:00 a.m.

7. After setting(s), please close the back cover, hang it vertically on the wall through the

Hook .

8.

9.

How to use SET Button : After the setting is nished, but the bird singing times are

later than or less than the set time, press the SET button to add to the correct time(s). For

example, the set time is 8:00, but the bird only sings 7 times, press the button only once,

you will hear the bird singing 8 times. lf the bird sings 9 times, press this button

11 times (9 + 11 = 20:00 = 8:00 p.m.), you will hear the bird singing 8 times.

DEMO Button is a testing button. Press it to test the bird is singing or not.

lf you make a mistake during the steps, the clock needs to be reset. Just take out all

batteries. One minute later, please reset the clock from the very beginning and start again

from step 2.

Instruction manual Modern Cuckoo | KA5886

Operating Buttons :

Volume Stwitch is to control the volume of the Bird Speaker . lt has MAX

(high), OFF (mute) and MIN (low) three levels. Please move the switch to the position

you need.

1. Open the back cover, insert 2 x “C” (LR14) size batteries into the Battery

Compartment A and 1 x “AA” size battery into the Battery Compartment B as

symbols indicate.

2. Turn the Time Setting Knob , make sure the clock hands move into the clockwise

direction. At rst, please set the clock to 6:00 o’clock. You will hear the bird singing

six times. lt means the CLOCK time (not local time) is at 6:00 o’clock a.m. Now, you

can start to set the local time.

Because this clock is 12-hour format, it can not tell day or night in 24 hours. The

next two steps are to help the clock to know day time or night time.

3. If the local time when setting is later than 6:00 a.m. but earlier than 6:00 p.m. (day

time), just turn the clock hands to the corresponding number. For example, if the

local time is at 9:35 a.m., turn the hands to 9:35.

4. If the local time when setting is later than 6:00 p.m. but earlier than 6:00 a.m. (night

time), please turn the clock hands to the corresponding number but add one more

circle turning. For example, if the local time is at 7:00 p.m., turn the hands to 7:00

and add one more hour and turn back again to 7:00.

5. Ignore the bird chiming or singing during the settings.

6. The programmed silent time of this clock is from 10:00 p.m. to 5:00 a.m. per day.

The initial bird singing time starts at 6:00 a.m.

7. After setting(s), please close the back cover, hang it vertically on the wall through the

Hook .

8.

9.

How to use SET Button : After the setting is nished, but the bird singing times are

later than or less than the set time, press the SET button to add to the correct time(s). For

example, the set time is 8:00, but the bird only sings 7 times, press the button only once,

you will hear the bird singing 8 times. lf the bird sings 9 times, press this button

11 times (9 + 11 = 20:00 = 8:00 p.m.), you will hear the bird singing 8 times.

DEMO Button is a testing button. Press it to test the bird is singing or not.

lf you make a mistake during the steps, the clock needs to be reset. Just take out all

batteries. One minute later, please reset the clock from the very beginning and start again

from step 2.

Instruction manual Modern Cuckoo | KA5886

Operating Buttons :

Volume Stwitch is to control the volume of the Bird Speaker . lt has MAX

(high), OFF (mute) and MIN (low) three levels. Please move the switch to the position

you need.

1. Open the back cover and insert 2 x “C” (LR14) batteries

into Battery Compartment A and 1 x “AA” battery into

Battery Compartment B, following the indicated polarity.

Next, turn the Time Setting Knob, ensuring that the clock

hands move in a clockwise direction. First, set the clock to

6:00. You will hear the bird sing six times, which indicates

that the clock time (not the local time) is set to 6:00 a.m.

You can now begin setting the local time.

2. Because this clock uses a 12-hour format, it cannot

distinguish between day and night on its own. The

following steps help the clock determine whether it is

daytime or nighttime. If the local time is between 6:00

a.m. and 6:00 p.m. (daytime), simply turn the clock hands

to the corresponding time. For example, if the local time

is 9:35 a.m., set the hands to 9:35. If the local time is

between 6:00 p.m. and 6:00 a.m. (nighttime), set the clock

hands to the corresponding time and add one full rotation.

For example, if the local time is 7:00 p.m., set the hands

to 7:00, add one extra cycle (which adds an extra hour),

and then return to 7:00.

3. Ignore any bird chimes or singing during the setting

process. The programmed silent period of this clock is

from 10:00 p.m. to 5:00 a.m., and the bird begins singing

at 6:00 a.m. After you have nished setting the time, close

the back cover and hang the clock vertically on the wall

using the provided hook.

4. Operating Buttons: The Volume Switch controls the

volume of the Bird Speaker. It offers three levels: MAX

(high), OFF (mute), and MIN (low). Move the switch to

the desired position.

5. How to Use the SET Button: After completing the

settings, if the number of bird chimes does not match

the set time, press the SET button to adjust the count.

For example, if the time is set to 8:00 but the bird

chimes only 7 times, press the SET button once so

that it chimes 8 times. If the bird chimes 9 times, press

the SET button 11 times (since 9 + 11 = 20:00, which

corresponds to 8:00 p.m.) to adjust the chime count

to 8.

6. The DEMO Button is a test button. Press it to verify that

the bird is singing.

7. If you make a mistake during any of these steps,

reset the clock by removing all the batteries. Wait one

minute, then restart the process from step 2.

1. Open the back cover, insert 2 x “C” (LR14) size batteries into the Battery

Compartment A and 1 x “AA” size battery into the Battery Compartment B as

symbols indicate.

2. Turn the Time Setting Knob , make sure the clock hands move into the clockwise

direction. At rst, please set the clock to 6:00 o’clock. You will hear the bird singing

six times. lt means the CLOCK time (not local time) is at 6:00 o’clock a.m. Now, you

can start to set the local time.

Because this clock is 12-hour format, it can not tell day or night in 24 hours. The

next two steps are to help the clock to know day time or night time.

3. If the local time when setting is later than 6:00 a.m. but earlier than 6:00 p.m. (day

time), just turn the clock hands to the corresponding number. For example, if the

local time is at 9:35 a.m., turn the hands to 9:35.

4. If the local time when setting is later than 6:00 p.m. but earlier than 6:00 a.m. (night

time), please turn the clock hands to the corresponding number but add one more

circle turning. For example, if the local time is at 7:00 p.m., turn the hands to 7:00

and add one more hour and turn back again to 7:00.

5. Ignore the bird chiming or singing during the settings.

6. The programmed silent time of this clock is from 10:00 p.m. to 5:00 a.m. per day.

The initial bird singing time starts at 6:00 a.m.

7. After setting(s), please close the back cover, hang it vertically on the wall through the

Hook .

8.

9.

How to use SET Button : After the setting is nished, but the bird singing times are

later than or less than the set time, press the SET button to add to the correct time(s). For

example, the set time is 8:00, but the bird only sings 7 times, press the button only once,

you will hear the bird singing 8 times. lf the bird sings 9 times, press this button

11 times (9 + 11 = 20:00 = 8:00 p.m.), you will hear the bird singing 8 times.

DEMO Button is a testing button. Press it to test the bird is singing or not.

lf you make a mistake during the steps, the clock needs to be reset. Just take out all

batteries. One minute later, please reset the clock from the very beginning and start again

from step 2.

Instruction manual Modern Cuckoo | KA5886

Operating Buttons :

Volume Stwitch is to control the volume of the Bird Speaker . lt has MAX

(high), OFF (mute) and MIN (low) three levels. Please move the switch to the position

you need.

DO NOT TOUCH THE BIRD

ALWAYS USE THE TIME SETTING KNOB TO ADJUST THE TIME

1. MOUNTING HOLE

2. BATTERY COMPARTMENT (A)

3. BATTERY COMPARTMENT (B)

4. TIME SET KNOB

5. BIRD SPEAKER

6. OPERATING BUTTONS

7. DEMO BUTTON

8. VOLUME SWITCH

9. SET BUTTON

Ocena

Więcej o tej instrukcji

Rozumiemy, że miło jest mieć papierową instrukcję obsługi Karlsson KA5886WH Zegar. Zawsze możesz pobrać instrukcję z naszej strony internetowej i wydrukować ją samodzielnie. Jeśli chcesz otrzymać oryginalną instrukcję, zalecamy skontaktowanie się z Karlsson. Być może będą w stanie dostarczyć oryginalną instrukcję. Szukasz instrukcji swojego Karlsson KA5886WH Zegar w innym języku? Wybierz preferowany język na naszej stronie głównej i wyszukaj numer modelu, aby sprawdzić, czy jest on dostępny.

Dane techniczne

Wszystkie podręczniki dla Karlsson Zegary
Więcej podręczników Zegary

Często zadawane pytania dotyczące Karlsson KA5886WH Zegar

Nasz zespół wyszukuje przydatne informacje na temat produktu i udziela odpowiedzi na często zadawane pytania. Jeśli znajdziesz nieścisłości lub błędy w naszych odpowiedziach na pytania, poinformuj nas o tym przy pomocy naszego formularza kontaktowego.

Produkty powiązane

Instrukcja

Karlsson KA6042RD Zegar

Instrukcja

Karlsson KA6042BL Zegar

Instrukcja

Karlsson KA5805BK Zegar

Instrukcja

Karlsson KA6026PI Zegar

Instrukcja

Karlsson KA6053YE Zegar

Instrukcja

Karlsson KA6098RD Zegar

Instrukcja

Karlsson KA6028RD Zegar

Instrukcja

Karlsson KA6055BK Zegar

Powiązane kategorie
